22-inch MFD
$5,950.00
In stock
SKU
DP215XL

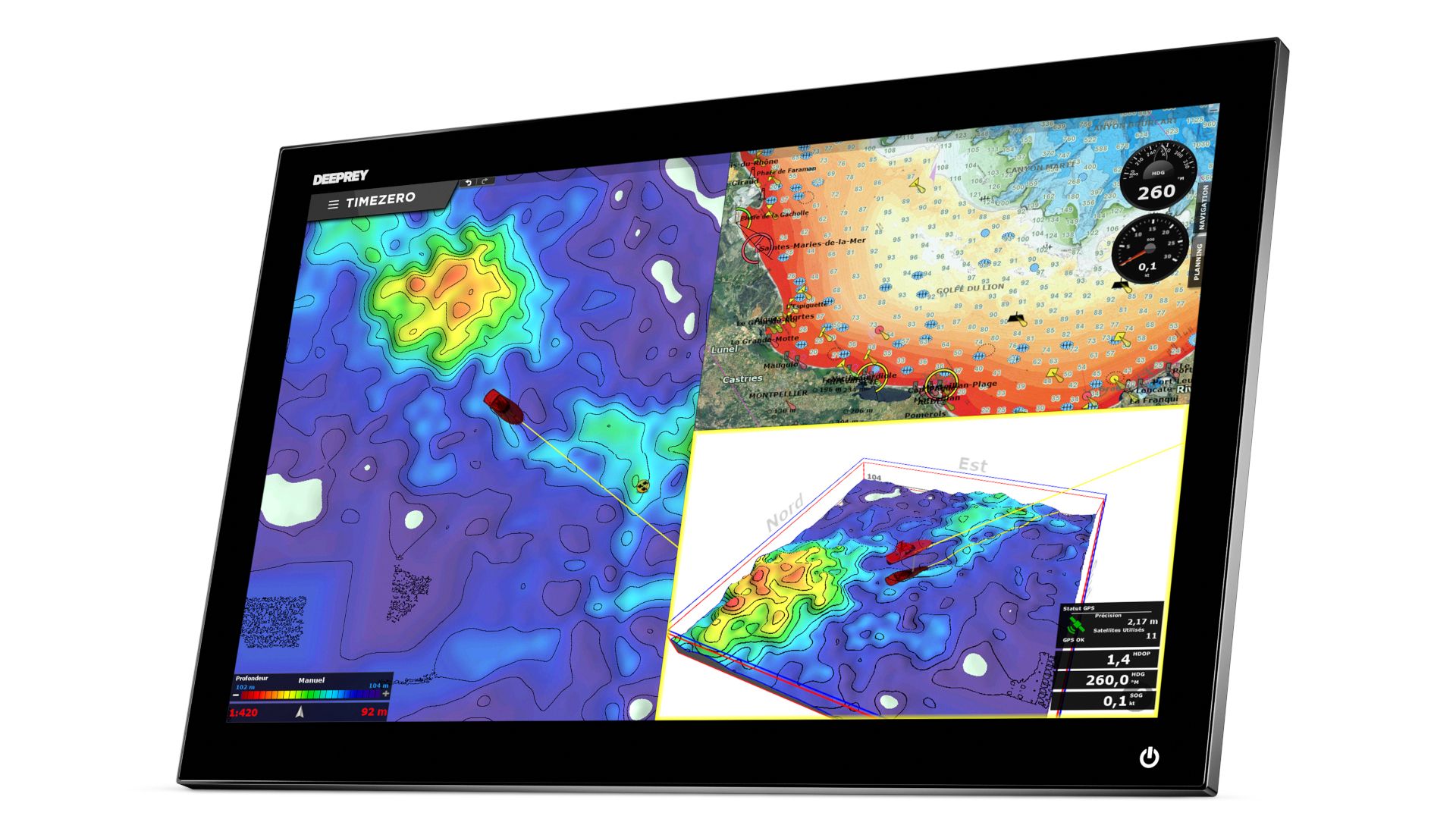

Deeprey’s 22-inch MFDs combine the power of a Windows PC with the plug-and-play ease of a traditional marine display. Run advanced marine software with seamless integration via NMEA 0183, NMEA 2000, Ethernet, and WiFi. Built for harsh marine environments, they feature a high-brightness, anti-glare touchscreen and rugged waterproof casing with marine-grade connectors. Ideal for both tech-savvy recreational boaters and professional mariners, Deeprey’s XL series delivers high performance, flexibility, and durability on the water.
Power Meets Simplicity with the XL series
Deeprey’s 22-inch multifunction displays are much more than just MFDs—they’re fully powered Windows PCs built into a marine-grade, user-friendly form factor. Combining the power of a marine computer with the plug-and-play ease of traditional MFDs, these displays let you run advanced software like TimeZero, Adrena, and TurboWin, giving you the flexibility to handle navigation, 3D mapping, real-time data monitoring, and more.
Key Features
- Complete Connectivity: Full support for NMEA 0183, NMEA 2000, Ethernet, and WiFi, ensuring seamless integration with modern and legacy systems.
- Superior Display: High-brightness, anti-glare & anti-reflective touchscreen with optical bonding for clear visibility in direct sunlight.
- High Performance: Equipped with a 10th generation Intel processor and superior Intel® UHD graphics.
- Rugged Durability: Waterproof anodized aluminum casing with marine-grade connectors built to withstand harsh environments.
- HDMI Output: Easily connect external marine monitors for expanded display options.
- Smart Power Management(12V/24V): Low energy consumption and protection against power surges.
Display
| DISPLAY SIZE | 21.5 inch |
| BRIGHTNESS (CD/M²) | 1000 cd/m² sunlight readable |
| TOUCHSCREEN | Yes |
| TOUCHSCREEN TYPE | Project Capacitive Touch (10 points) |
| DISPLAY RESOLUTION | 1920x 1080pixels |
| ASPECT RATIO | 16:9 |
| SUPPORT COLOR | 16.7M colors |
| DISPLAY MODE | IPS wide-view |
Embedded System
| CPU | 10th Gen Intel® Processor up to 2.60 GHz |
| MEMORY | 8Gb DDR4 |
| HARD DRIVE CAPACITY | 256Gb SSD |
| GRAPHICS | Intel® UHD Graphics for 10th Gen Intel® Processors |
| AUDIO | High-Definition Audio Codec (HD), Line out x 2 |
| VIDEO | 1 x HDMI out |
| NETWORK | Intel® Gigabit Ethernet controller |
| WIRELESS NETWORK | WIFI 2.4 GHz |
| I/O INTERFACE | 2×USB 2.0 2 x COM RS232 1 x Nmea 2000 |
| OPERATION SYSTEM | Windows 10 pro |
Connections
| NMEA 2000® PORTS | 1 |
| CONNECTIONS NMEA0183 INPUT PORTS | 2 |
| NMEA 0183 INPUT (TX) PORTS | 2 |
| ETHERNET NETWORK PORTS | 2 |
Mechanical Specifications
| MATERIAL | 100 % Aluminum Alloy |
| COLOR | Black |
| IP GRADE | IPX6* |
| DIMENSION | 20.55 x 12.68 x 2.56 inches (52.2 x 32.2 x 6.5 cm) |
| MOUNTING OPTIONS | flush |
| WEIGHT | 14.3 lbs (6.5 kg) |
Electrical Specifications
| POWER INPUT | 12 VDC (9V to 36 V with DEEPREY Power Cable 6A2) |
| TYPICAL CURRENT DRAW AT 12 VDC | 2.0 A |
| MAXIMUM CURRENT DRAW AT 12 VDC | 4.5 A |
| MAXIMUM POWER USAGE AT 12 VDC | 54W |
Operating Environment
| TEMPERATURE RANGE | operating: -10 to 45°C, storage :-20 to 80°C |
| RELATIVE HUMIDITY | 5%~95% @ 40° C, non-condensing |
| VIBRATION | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms |
In The Box
- Deeprey MFD unit
- Power cable
- Mounting hardware
- User manual
- Warranty information
Manuals
Whether you are looking for setup guidance, troubleshooting steps, or simply want to learn more about your product, our comprehensive user manuals provide the information you need.
