Bring-your-own-software hardware
Marine-grade glass for the software you already run.

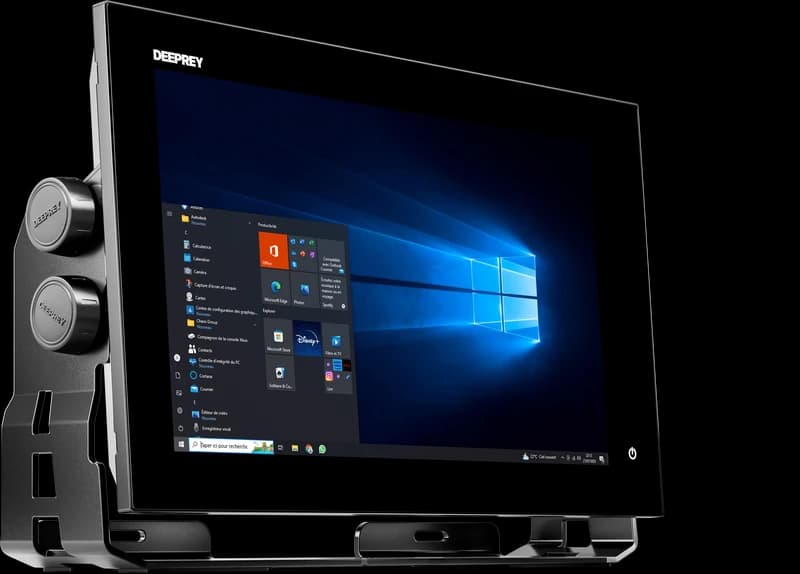

A sealed, sunlight-readable computer in an MFD form factor — 12, 16, 19 and 22 inch. It ships with Windows and nothing else: you install the navigation software you've already standardised on. Deeprey supplies the hardware; you choose what runs on it.
Which one
Two different jobs.
Most helms want a navigation system that works out of the box. A few want rugged glass to run software they've already chosen. Deeprey makes both — they aren't tiers of the same thing.
Helm PCRugged marine glass running Windows, with no navigation software preinstalled. You bring your own. For the helm that has already committed to its software.You're here
Who it's for
For a helm that's already decided.
The Helm PC is a narrow, deliberate choice. If none of these are you, the chartplotter is the better buy.
- Committed to a Windows suite
- You already run TimeZero, Nobeltec or similar and want marine-grade hardware to run it on.
- Fleet standardisation
- You're rolling one Windows software image across a fleet and need identical, ruggedised displays.
- Integrators & OEMs
- You build the helm and want a sealed, sunlight-readable PC in a mounting-ready form factor.
- Development & one-offs
- You need an open platform to run or build software the fixed appliances won't.
The hardware
Sealed, bright, and built to be mounted.
- Sunlight-readable
- 1000 cd/m² display, optically bonded and anti-reflective — readable in direct sun.
- Marine-grade build
- Sealed enclosure engineered for the salt-air helm, in a bracket-mount MFD form factor.
- IPS wide-view touch
- HD IPS panel with a wide viewing angle and a responsive touchscreen.
- Full Intel computer
- A desktop-class Intel processor and graphics — headroom for demanding marine software.
Specifications
- Available sizes
- 12″, 16″, 19″ or 22″
- Processor
- 10th-gen Intel®, 2.5 GHz
- Graphics
- Intel® UHD graphics
- Operating system
- Windows 10 Pro, licensed
- Storage
- 128 GB SSD
- Display
- HD IPS, wide-view, 10-point touch
- Brightness
- 1000 cd/m², optically bonded, anti-reflective
- Networking
- NMEA 2000, NMEA 0183, Ethernet
Ships with Windows, and nothing else.
No navigation software is preinstalled — that's deliberate. You install what you've chosen. If you'd rather it arrived ready to navigate, that's the Deeprey Chartplotter, not this.
See the chartplotter rangeEnquire
Request a quoteTell us your setup.
The Helm PC is configured and quoted to your install and the software you plan to run. Talk to us and we'll spec the right unit.
