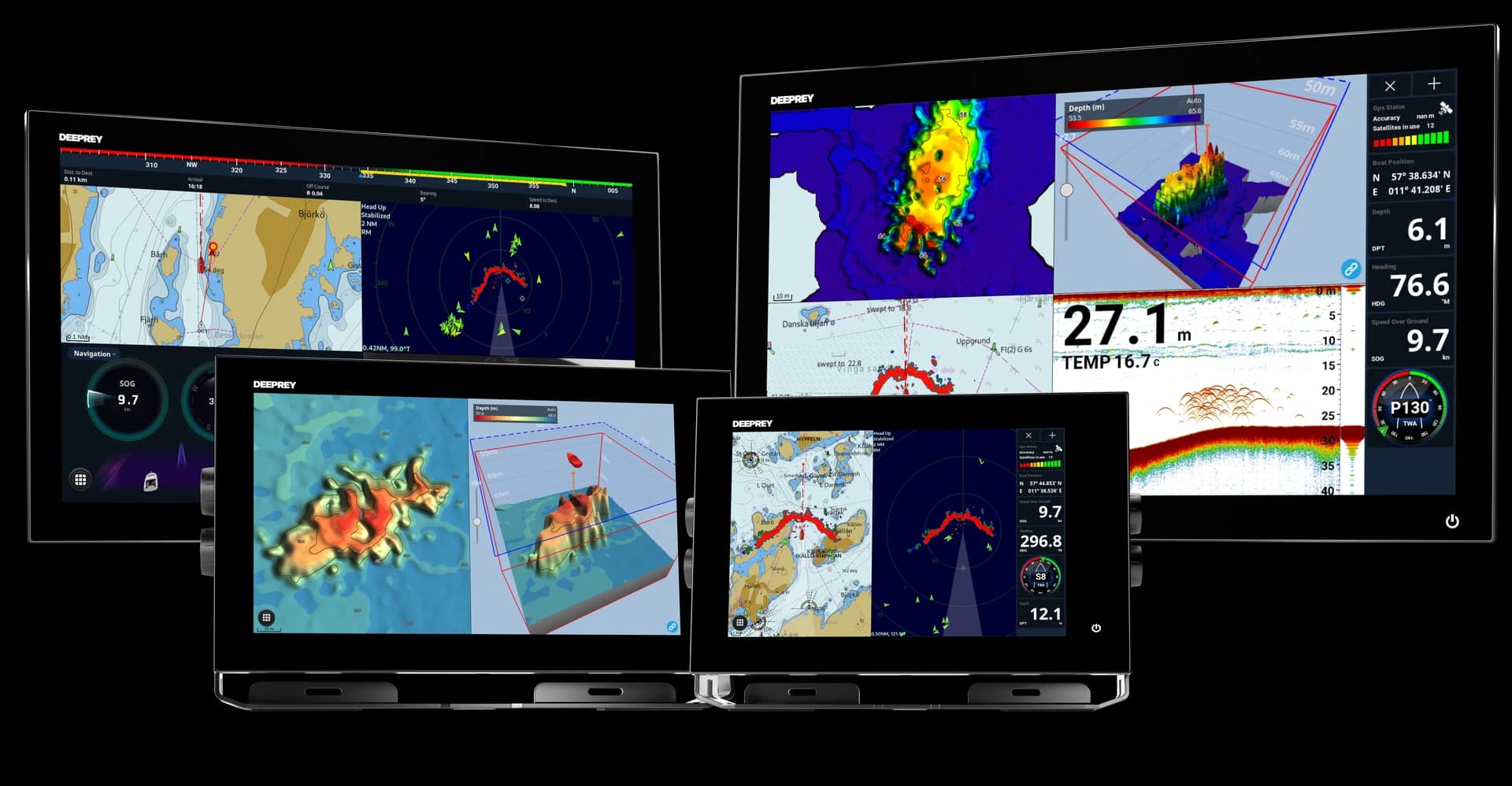

The Deeprey chartplotter family — four sizes showing chart, radar, sonar and 3D bathymetry
Chartplotters

Pick a size. Not a tier.

Indicative prices in US dollars, excluding local taxes, duty, shipping and installation. Your Deeprey dealer quotes the final price for your territory and helm.

The platform

Nothing the water can hide.

A full Intel computer and graphics engine at the helm. Run radar, sonar, the 3D seabed and AI hazard watch all at once, nothing throttled to make room. The chart still follows your finger under full load.

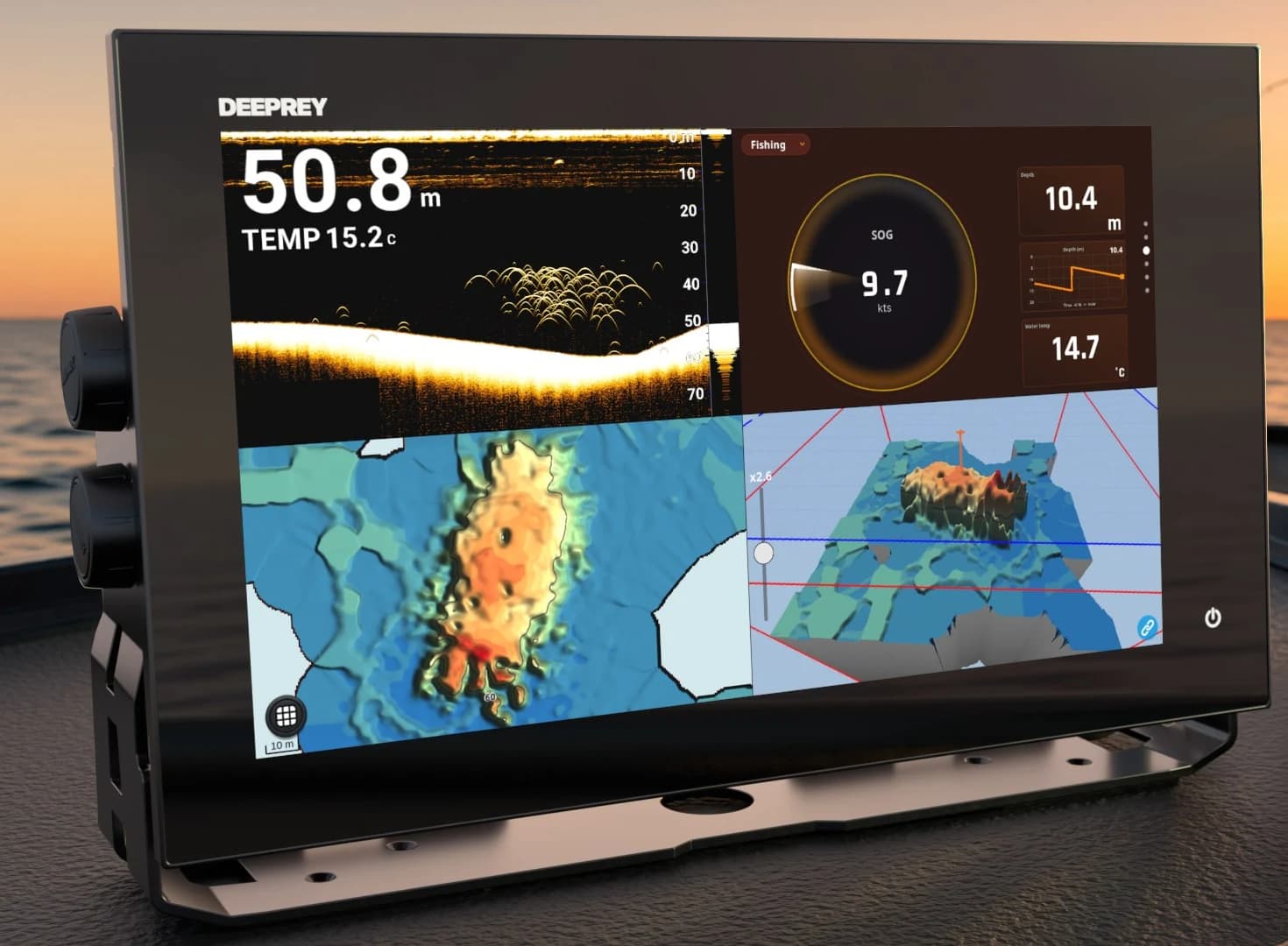

Deeprey chartplotter at the helm at sunset, running sonar, instruments and 3D bathymetry at once
Compare

Side by side.

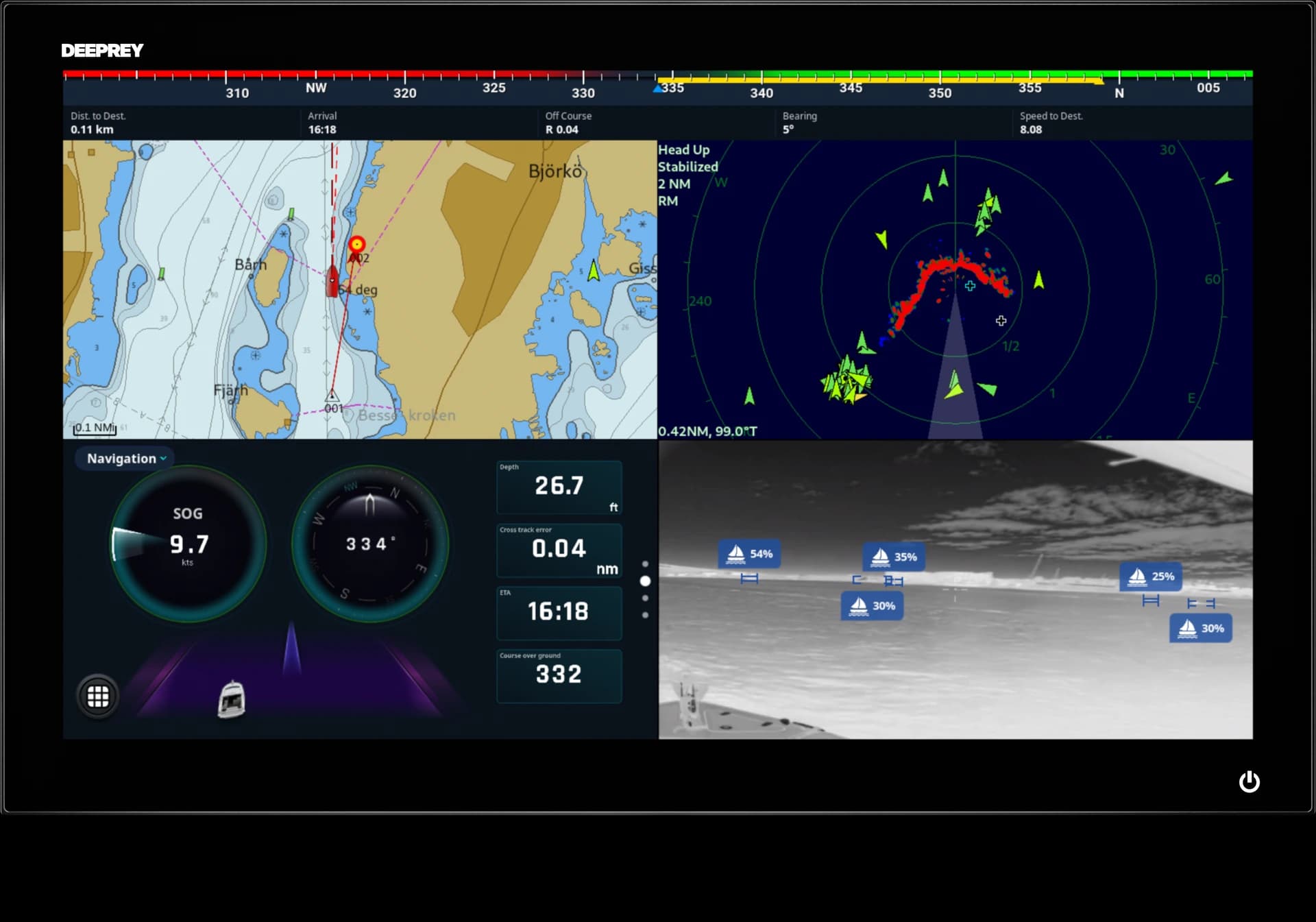

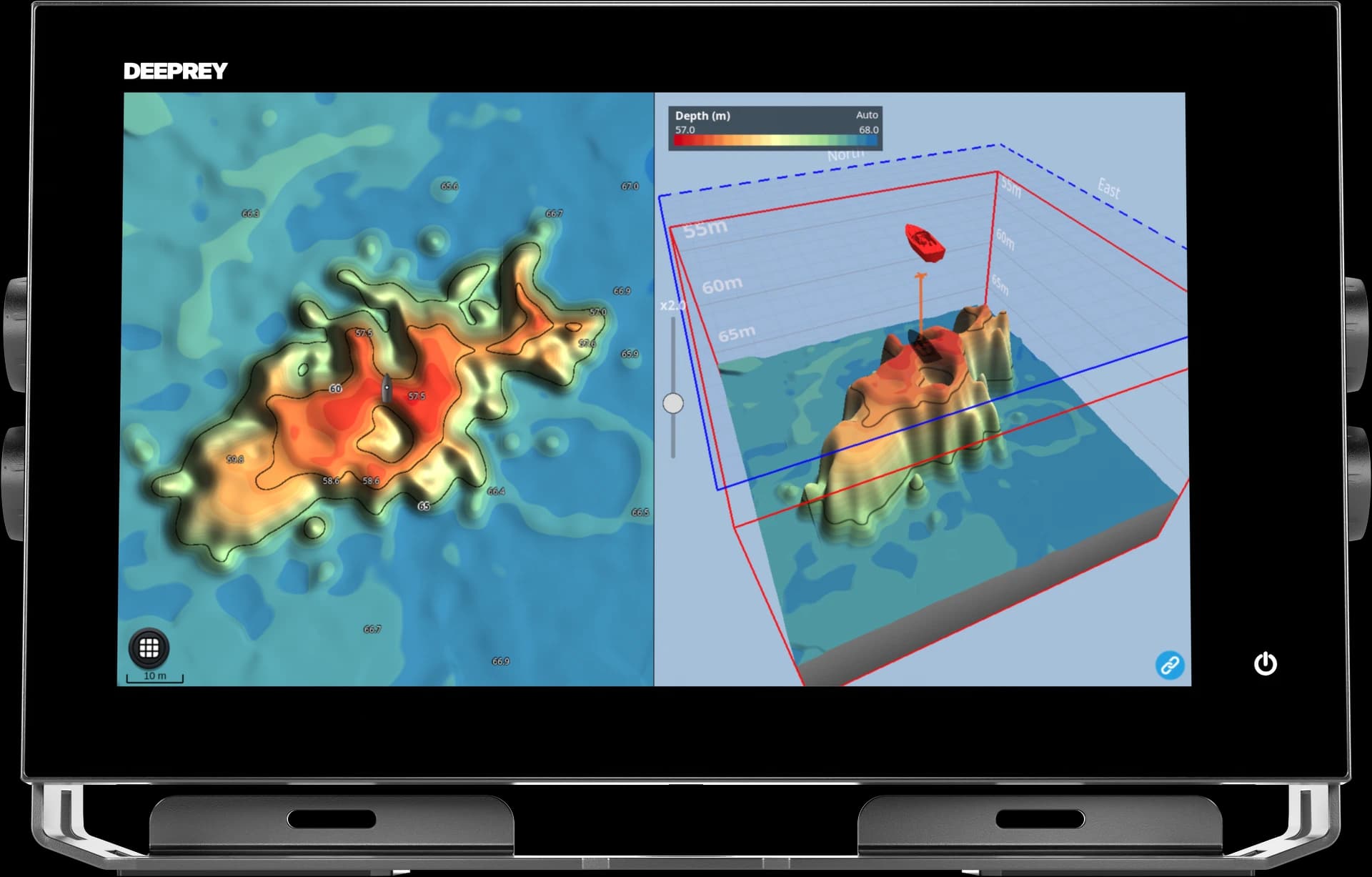

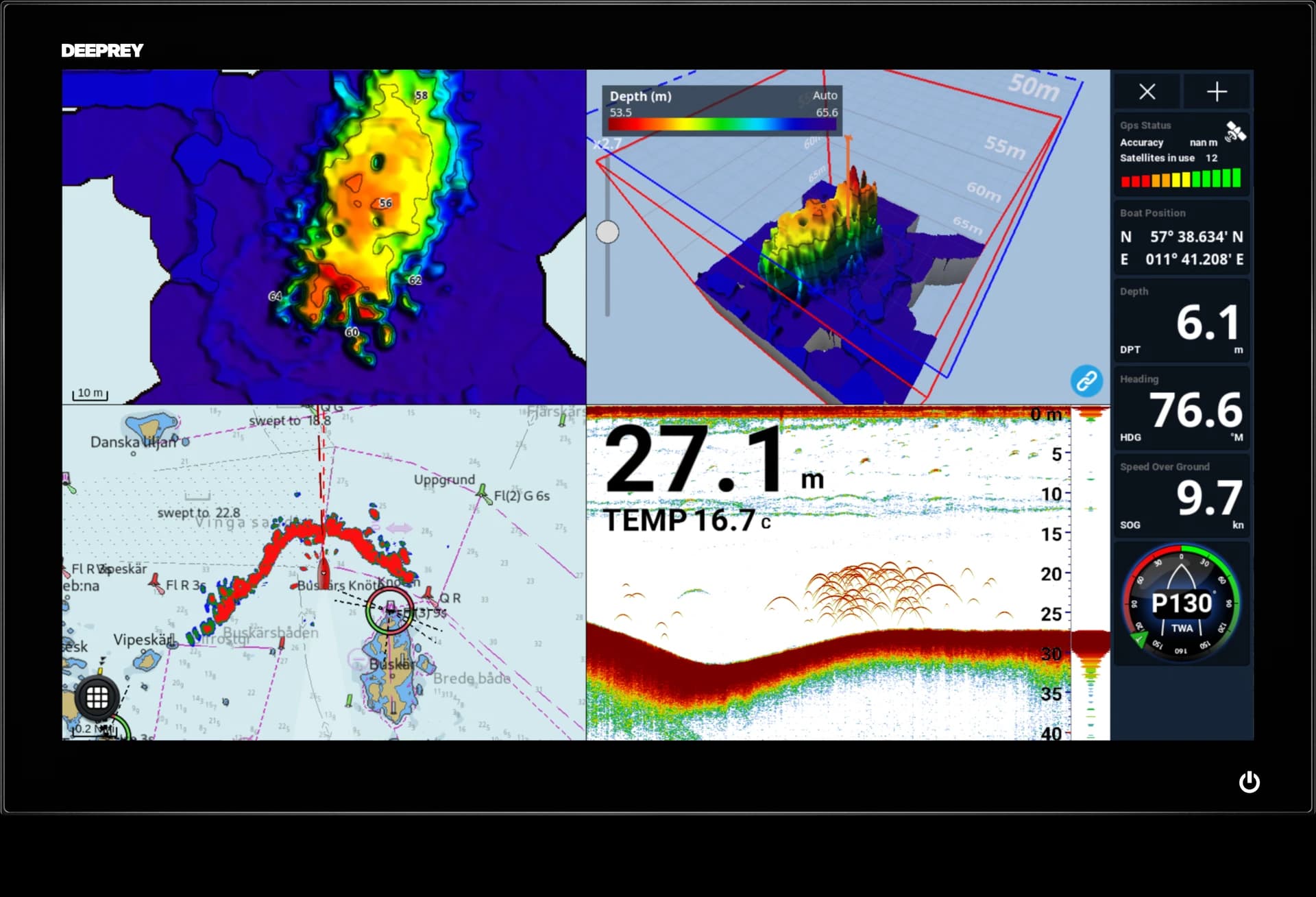

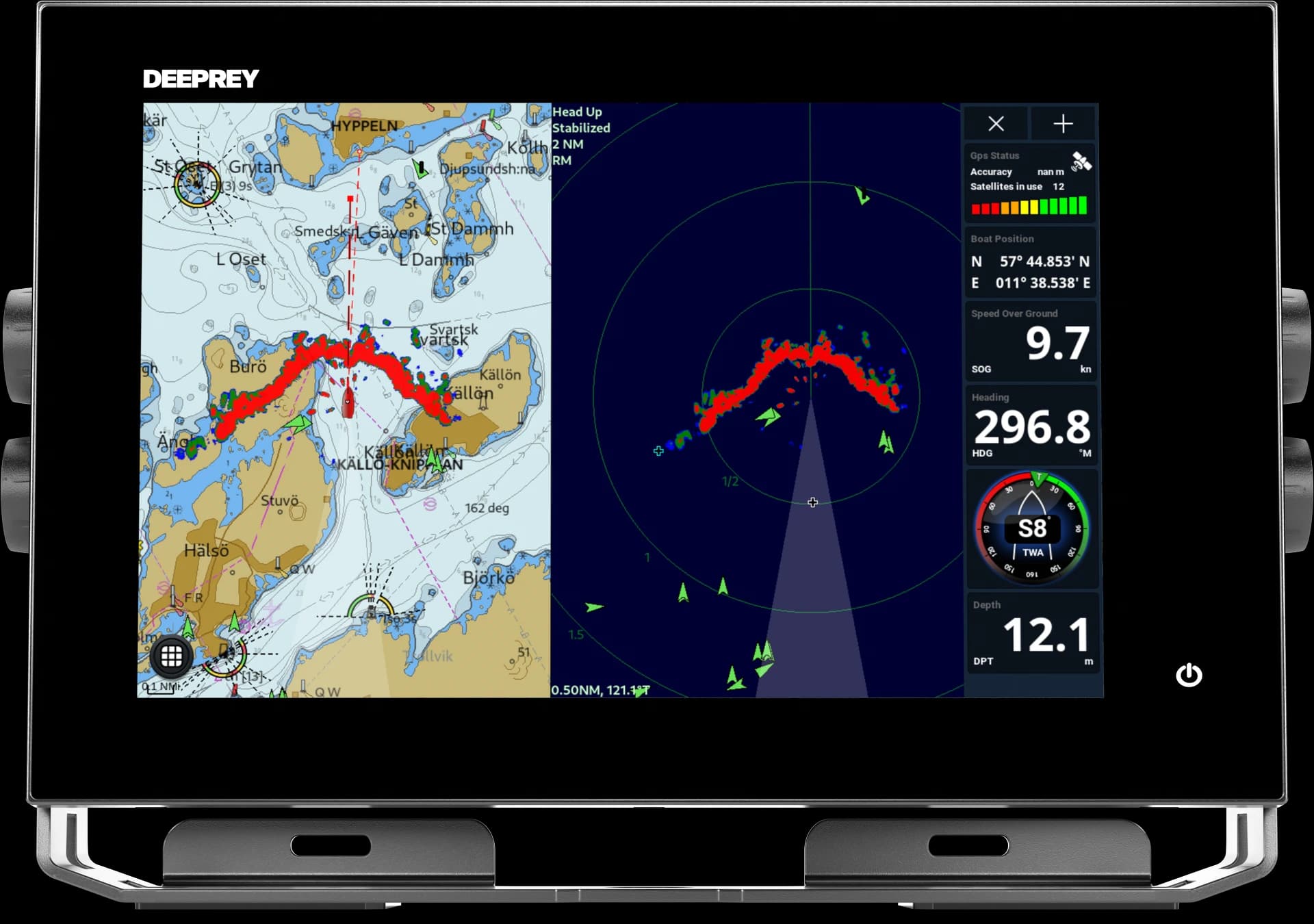

MFD 12MFD 16MFD 19MFD 22
Display12.1″ IPS15.6″ IPS18.5″ IPS21.5″ IPS
Resolution1280 × 8001920 × 10801920 × 10801920 × 1080
Ethernet ports1222
HDMI out—111
Built-in GPS10 Hz10 Hz——
MountingBail or flushBail or flushFlushFlush
Price$2,450$3,950$6,450$7,950
Every size includes
Sunlight-readable screen
1000 cd/m², anti-reflective, 10-point touch
Processor
High-performance Intel® processor & graphics
Memory & storage
8 GB memory · 256 GB SSD
Networking
NMEA 2000, 2 × NMEA 0183, Gigabit Ethernet, Wi-Fi
Power
12 V DC (9–36 V), 54 W maximum
In the box
MFD unit, power cable, mounting hardware, manual
Complete the helm

Pairs with.

Bronze thru-hull transducerTransducersCHIRP and imaging sonar sensors, matched to the sounder.
Deeprey mounting bracket and knobAccessoriesBrackets, knobs, cabling and spares for the install.
Map of Deeprey dealers across 13 countries

13

Countries

5

Continents
Dealers

Installed by your local specialist.

Deeprey units are commissioned by marine electronics specialists across five continents — handling the mount, wiring, NMEA integration and first sea-trial calibration.
