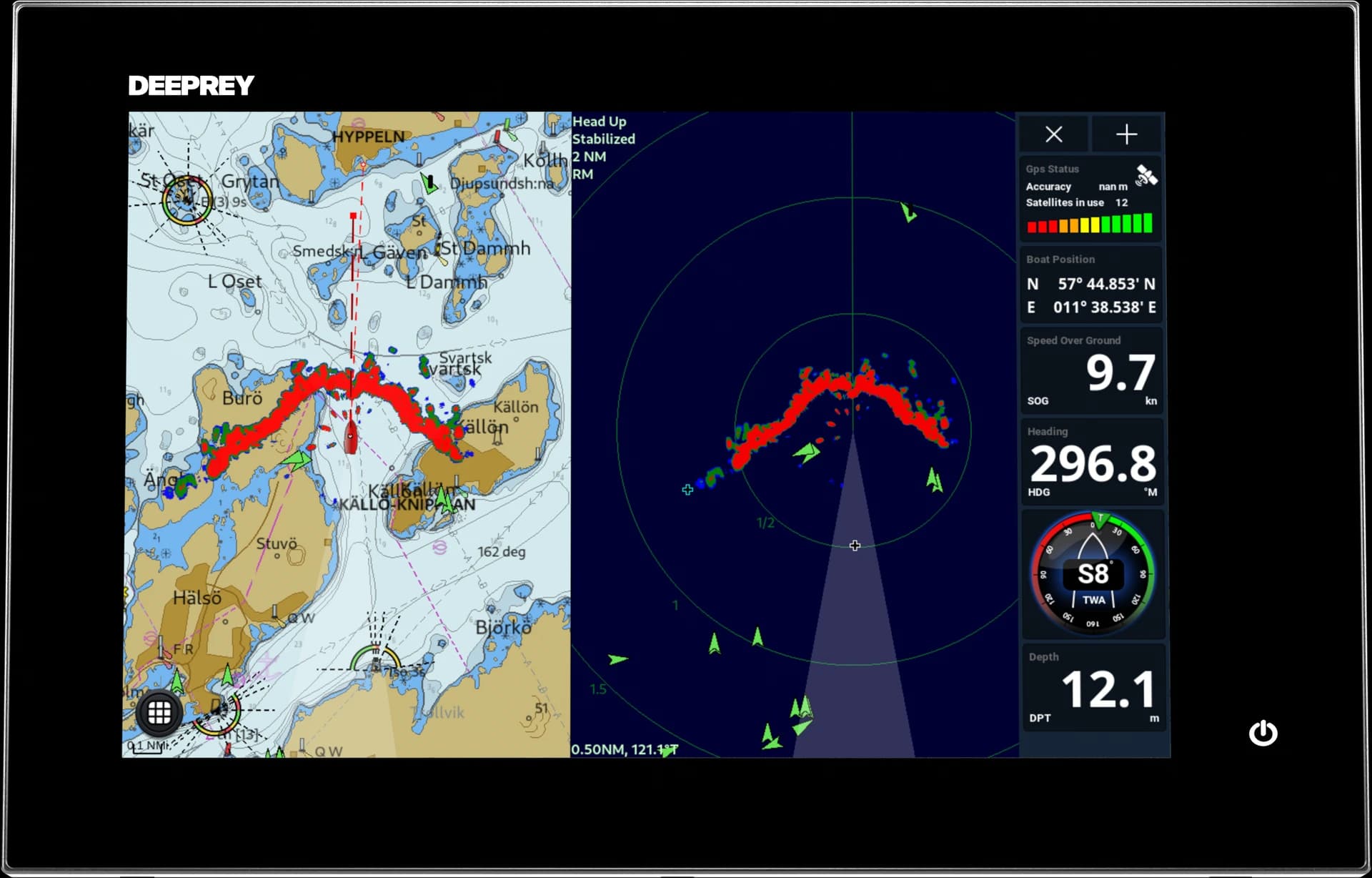

MFD 12
12.1″ IPS
$2,450 USD
You’re viewingChartplotter / Fishfinder
MFD 12
Full power, in the tightest helm.
- 12.1″ IPS
- 1280 × 800
- Bail or flush mount
Indicative prices in US dollars, excluding local taxes, duty, shipping and installation. Your Deeprey dealer quotes the final price for your territory and helm.
Capabilities
One screen. Every job.
Tap through what it puts in front of you — the same view you’ll have at the helm.
Auto-playing · tap to explore
ChartsHazard-first vector charts from real survey data — with auto-routing, tides and currents.
Fits your helm
Sized to the space you have.
- Width
- 341 mm
- Height
- 223 mm
- Depth
- 65 mm
- Weight
- 4.5 kg
- Mounting
- Bail or flush mount
- Display
- 12.1″ IPS
223 mm
341 mm
Specifications
Every detail.
- Sunlight-readable
- 1000 cd/m² display, anti-reflective and readable in direct sun.
- Optically bonded
- Bonded glass — no internal fogging, crisp at every angle.
- 10-point touch
- Glove-friendly multi-touch, responsive under spray.
- Marine-grade build
- Sealed enclosure engineered for the salt-air helm.
This size
- Display
- 12.1″ IPS
- Resolution
- 1280 × 800
- Ethernet ports
- 1
- HDMI out
- —
- Built-in GPS
- 10 Hz
- Mounting
- Bail or flush mount
- Model
- DP121M
- Price
- $2,450 USD
Every size includes
- Sunlight-readable screen
- 1000 cd/m², anti-reflective, 10-point touch
- Processor
- High-performance Intel® processor & graphics
- Memory & storage
- 8 GB memory · 256 GB SSD
- Networking
- NMEA 2000, 2 × NMEA 0183, Gigabit Ethernet, Wi-Fi
- Power
- 12 V DC (9–36 V), 54 W maximum
- In the box
- MFD unit, power cable, mounting hardware, manual
The range
Compare all four →Not sure on size?
Four sizes, one platform. Shown true to scale.
Resources
Download datasheet (PDF)Manuals & support.
Guides, updates and cover for the life of the unit.
13
Countries5
ContinentsDealers
Installed by your local specialist.
Deeprey units are commissioned by marine electronics specialists across five continents — handling the mount, wiring, NMEA integration and first sea-trial calibration.
