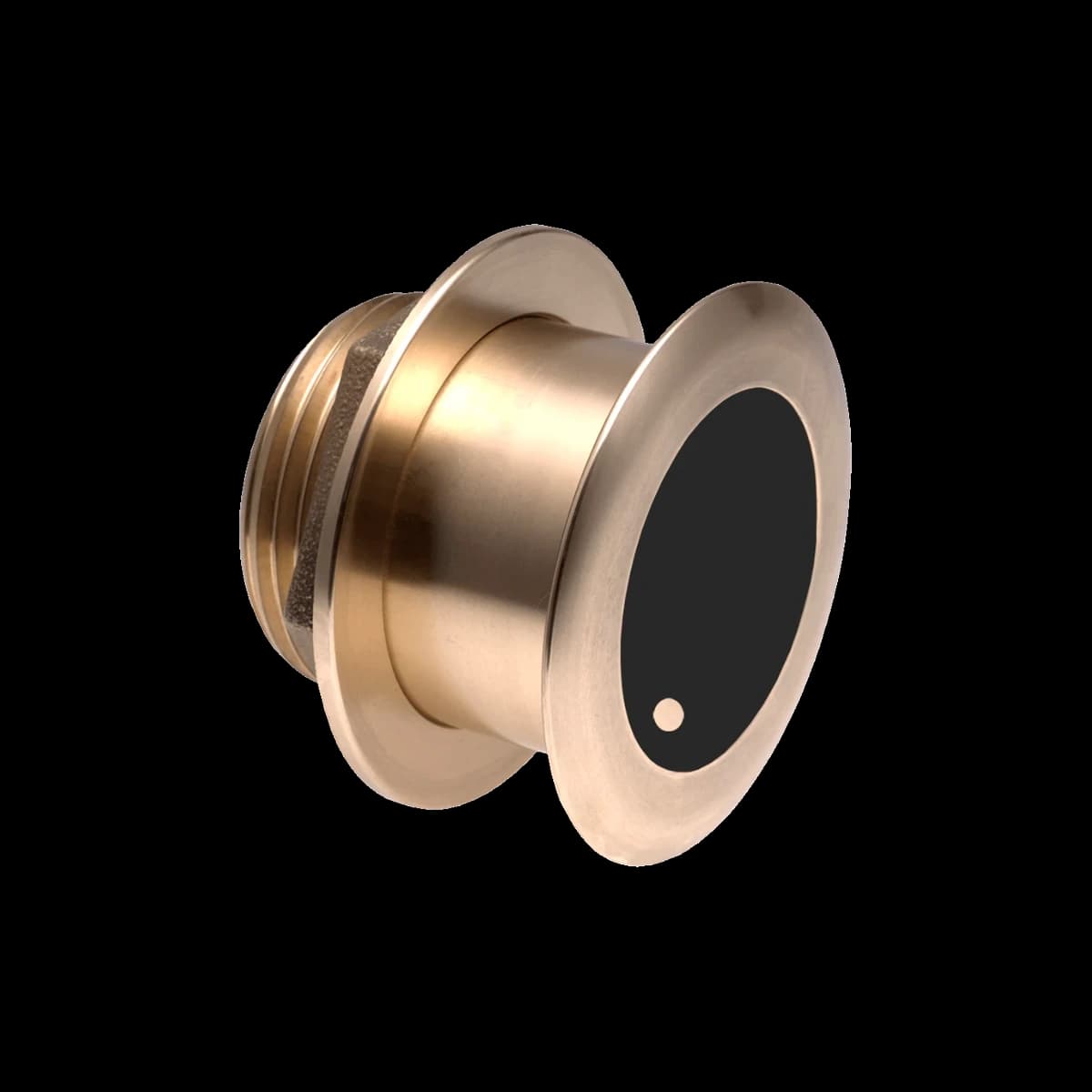

View IC-TM90M →Airmar IC-B190M
The offshore one
1 kW bronze thru-hull
One kilowatt of bronze. For the deep water offshore.
Sensing by Airmar®- Bronze thru-hull
- 1 kW
- Medium CHIRP, 85–135 kHz
Specifications
Every detail.
This transducer
- Mount
- Bronze thru-hull
- Element
- Tilted Element™
- Power
- 1 kW (500 W / 250 W selectable)
- Frequency
- Medium CHIRP, 85–135 kHz
- Bandwidth
- 50 kHz
- Beamwidth
- 16°–11°
- Max depth
- 400 m (1300 ft)
- Min depth
- 0.5 m (1.6 ft)
- Deadrise offsets
- 0°, 12°, 20°
- Sensors
- Depth + water temperature
- Output
- Processed CHIRP echogram over Ethernet
- Cable
- 10 m (33 ft) to Y-adapter
- Power supply
- 10.5–30 V DC
- Model
- IC-B190M
Every one includes
- Plug-and-play
- One 10 m cable to a Y-adapter for data and power. No separate sounder box to buy or wire in.
- Depth + temperature
- Depth and water-temperature sensors built in, read straight into the instruments.
- Auto everything
- Sensitivity, range and noise cancellation tune themselves. Set it and fish.
- Same picture, every screen
- Reads identically on every size, from the MFD 12 to the flagship MFD 22.
Works with
See the chartplotter rangeEvery chartplotter, same picture.
The sonar module is built into all four sizes, from the MFD 12 to the flagship MFD 22. Any of these transducers plugs straight in over Ethernet and reads the same on every helm.
Resources
Download datasheet (PDF)Fitting & support.
Installation guides, offsets and cover for the life of the transducer.
