The transom one
IC-TM90M
Transom mount · 100 W · 200 m (656 ft)

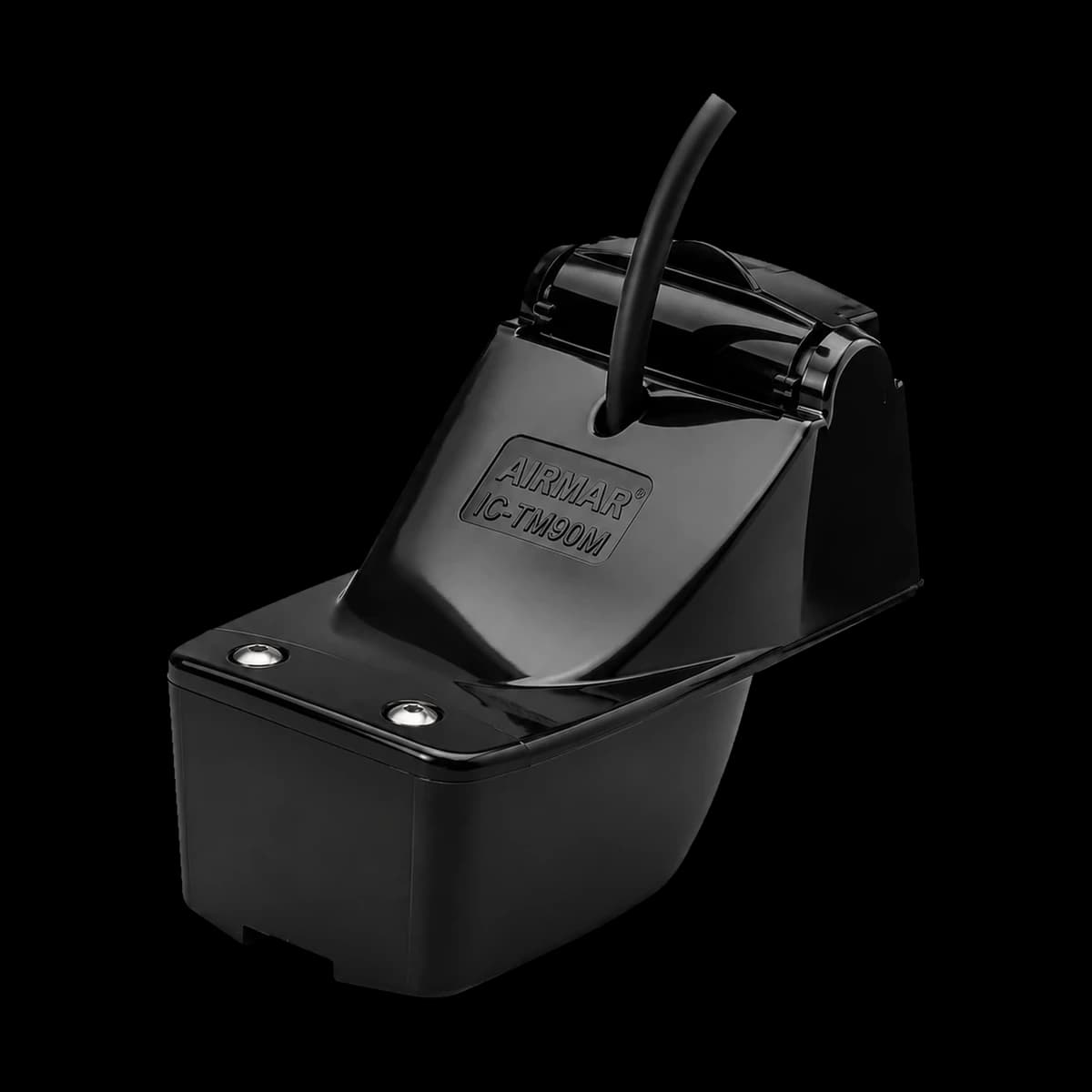

You're viewing thisAirmar IC-TM90M
The transom one
Transom mount · 100 W
Bolt it to the transom. No hole in the boat.
Sensing by Airmar®- Transom mount
- 100 W
- Medium CHIRP, 95–155 kHz
Specifications
Every detail.
This transducer
- Mount
- Transom mount
- Power
- 100 W
- Frequency
- Medium CHIRP, 95–155 kHz
- Bandwidth
- 60 kHz
- Beamwidth
- 26°–17°
- Max depth
- 200 m (656 ft)
- Min depth
- 0.5 m (1.6 ft)
- Max speed
- 40 knots
- Sensors
- Depth + water temperature
- Output
- Processed CHIRP echogram over Ethernet
- Cable
- 10 m (33 ft) to Y-adapter
- Power supply
- 10.5–16 V DC
- Model
- IC-TM90M
Every one includes
- Plug-and-play
- One 10 m cable to a Y-adapter for data and power. No separate sounder box to buy or wire in.
- Depth + temperature
- Depth and water-temperature sensors built in, read straight into the instruments.
- Auto everything
- Sensitivity, range and noise cancellation tune themselves. Set it and fish.
- Same picture, every screen
- Reads identically on every size, from the MFD 12 to the flagship MFD 22.
Works with
See the chartplotter rangeEvery chartplotter, same picture.
The sonar module is built into all four sizes, from the MFD 12 to the flagship MFD 22. Any of these transducers plugs straight in over Ethernet and reads the same on every helm.
Resources
Download datasheet (PDF)Fitting & support.
Installation guides, offsets and cover for the life of the transducer.
13
Countries5
ContinentsDealers
Installed by your local specialist.
Deeprey units are commissioned by marine electronics specialists across five continents — handling the mount, wiring, NMEA integration and first sea-trial calibration.
